034 Motorsport Performance Pack Dogbone and Inserts - Audi 8V.5/8Y RS3 & 8S TTRS

The benchmark for spherical dogbone engine mounts

On MQB platforms (Audi RS3 8V.5/8Y and TTRS 8S), the original engine mount (the well-known “dogbone”) is the weak link once the powertrain is pushed: play, excessive movement of the engine/transmission unit under torque, imprecise gear changes, and wheel hop on launch. 034Motorsport completely redesigned this part with a billet T6-6061 aluminum spherical mount, combined with a self-lubricating PTFE-lined spherical bearing that keeps the natural articulation while eliminating play.

A complete pack, designed to fully address the problem

This Performance Pack does not just replace the mount: it also includes the two inserts (upper and lower) that fill the gaps in the original bracket, where residual play usually hides. The result: a drivetrain literally locked to the chassis, torque transmitted almost instantly, and noticeably crisper gear changes, whether with a manual or DSG gearbox.

Why the upper insert changes everything

During testing, 034Motorsport identified a critical point: under violent loads (repeated wheel hop, aggressive launches), the spherical mount combined with the lower insert alone generates a bending moment on the mount arm, which can lead to failure within a few cycles. The upper insert (patent pending) corrects this flaw by limiting movement of the upper puck, distributing the loads along the axis the part was designed for.

What you gain day to day and on track

• Near-total elimination of engine/transmission play
• Shorter, more precise gear changes
• Much less wheel hop on launch
• Higher reliability thanks to a serviceable, rebuildable design
• NVH under control: low to moderate, with no loss of everyday comfort

Kit contents

• Billet spherical mount (T6-6061 aluminum, 303 stainless steel spacers, self-lubricating PTFE spherical bearing)
• Billet T6-6061 anodized upper insert

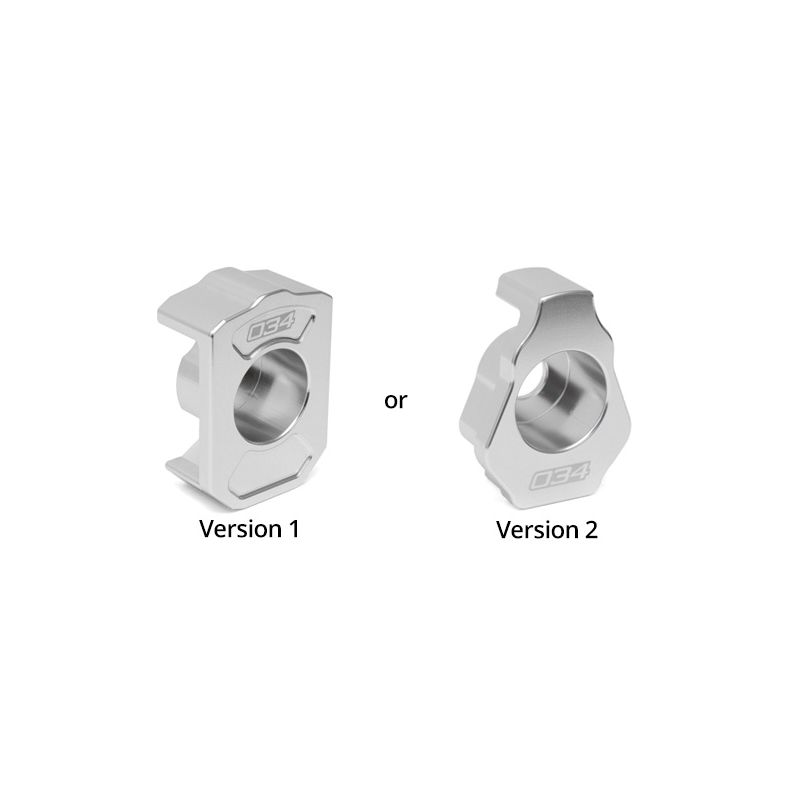

• Billet T6-6061 anodized lower insert (2 versions available depending on the original bracket, to be checked before ordering)
• New original hardware

Compatibility

• Audi RS3 8V.5 (MQB) 2.5 TFSI EVO DAZA, 2017 to present
• Audi RS3 8Y, 2.5 TFSI, 2023 to present
• Audi TTRS 8S (MQB) 2.5 TFSI EVO DAZA, 2018 to present

Please note: installation with BFI engine/transmission mounts is not covered by the 034Motorsport warranty.
