RacingLine Direct Intake Kit VWR12G60D - Golf 6, Scirocco, Passat CC 2.0 TDI

On 2.0 TDI engines (A5/PQ35 platform), the stock airbox is designed primarily for quietness and filtration, at the expense of airflow. As soon as power is increased, it becomes a real bottleneck. The RacingLine direct intake kit replaces the entire stock assembly with a high-performance cold air system, developed and validated on Volkswagen Racing race cars.

How this direct intake works

The principle is simple: draw cooler, denser air from outside the engine bay, then route it to the turbo by the most direct and smooth path possible. As a result, airflow increases by up to 9% and turbo response improves by up to 500 rpm. Cooler air contains more oxygen: at the same boost pressure, the engine produces more torque and the turbo responds faster under acceleration. It is one of the first modifications to make on a TDI tune, alone or alongside an ECU tuning.

Technical specifications

• Fully enclosed intake box in Midnight Black anodized aluminum, which isolates the filter from engine heat

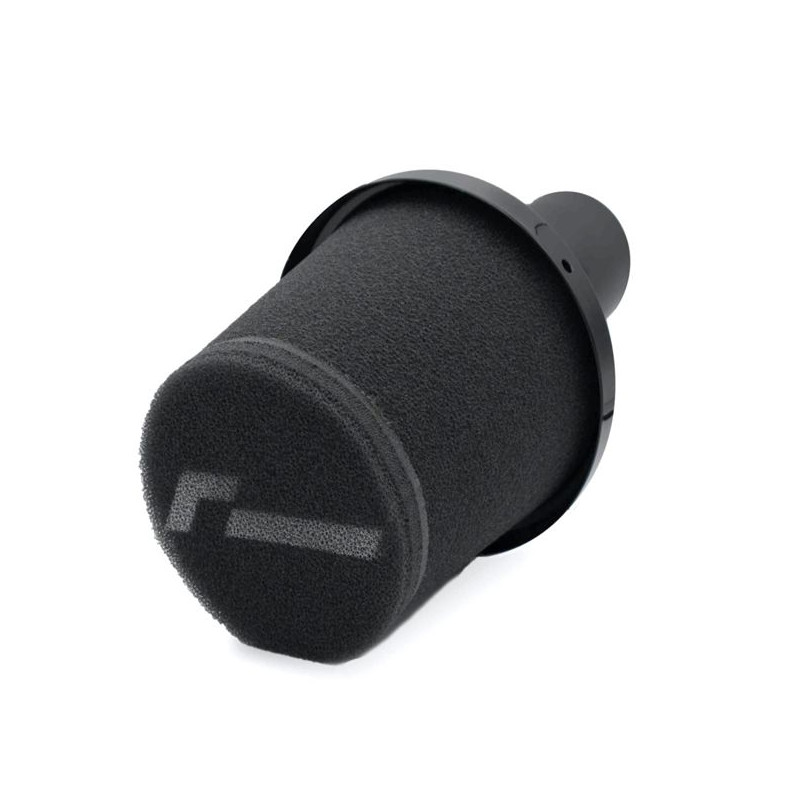

• Triple-layer conical filter Trifoam with a very large filter surface, made of open-cell polyurethane foam, hand-made in the United Kingdom
• Silicone turbo hose with internal lip shaped for a turbulence-free air transition, stainless steel clamps included
• Direct fit (bolt-on), compatible with Stage 1 ECU tuning and beyond

Frequently asked questions

What real power gain can be expected?

On its own, a direct intake provides a modest but real gain (often a few hp and above all better response). Its main benefit is removing the stock air restriction so the engine can breathe: the real gain shows once combined with an ECU tuning, where the stock intake restricts the air inlet.

Does the engine sound change much?

Yes, the intake note becomes richer and more pronounced under acceleration and on overrun, while remaining contained by the closed box. It is not a harsh open filter: the tone stays balanced and tasteful.

Does the filter need maintenance?

Yes. The Trifoam filter should be cleaned and re-oiled roughly every 16,000 km using the dedicated RacingLine oil and cleaner kit. A dirty or poorly oiled filter loses performance and filtration.

Compatibility

• VW Golf 6 (2008-2014)
• VW Scirocco 2.0 TDI (2008+)
• VW Passat CC (2008-2017), with adapter
• Audi A3 8P (2003-2012)
• SEAT Leon II 1P (2005-2012)
• Skoda Octavia II 1Z (2004-2013)

A pleated cotton filter version, maintenance-free, is available under part number VWR12G60DC. The replacement foam filter corresponds to part number VWR12G60RFO.

Going further

Combine this intake with a RacingLine ECU tuning, a turbo induction hose and, depending on the engine, an additional intercooler to fully use the extra airflow.
