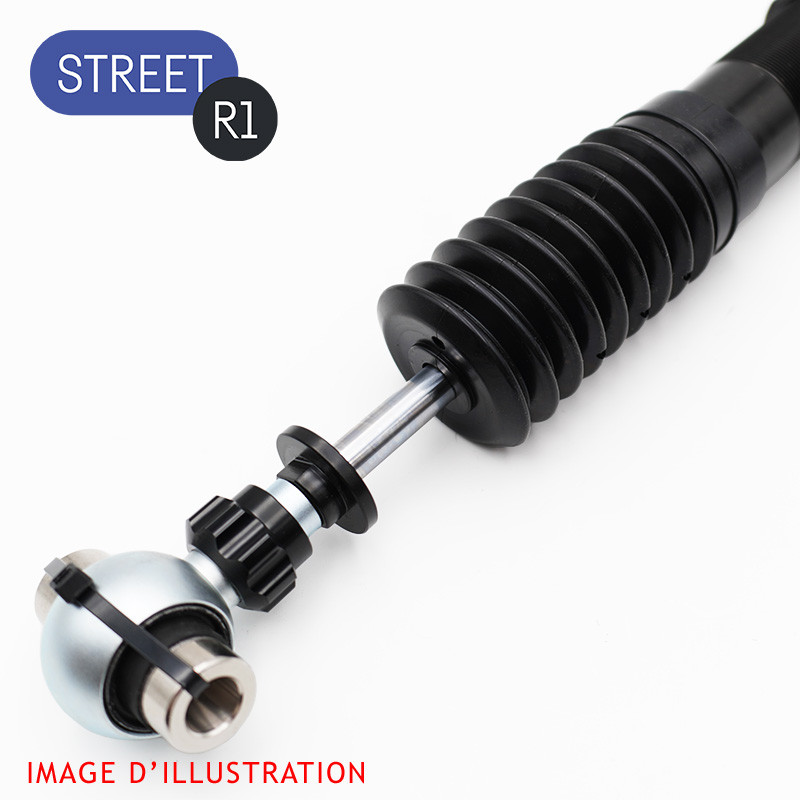

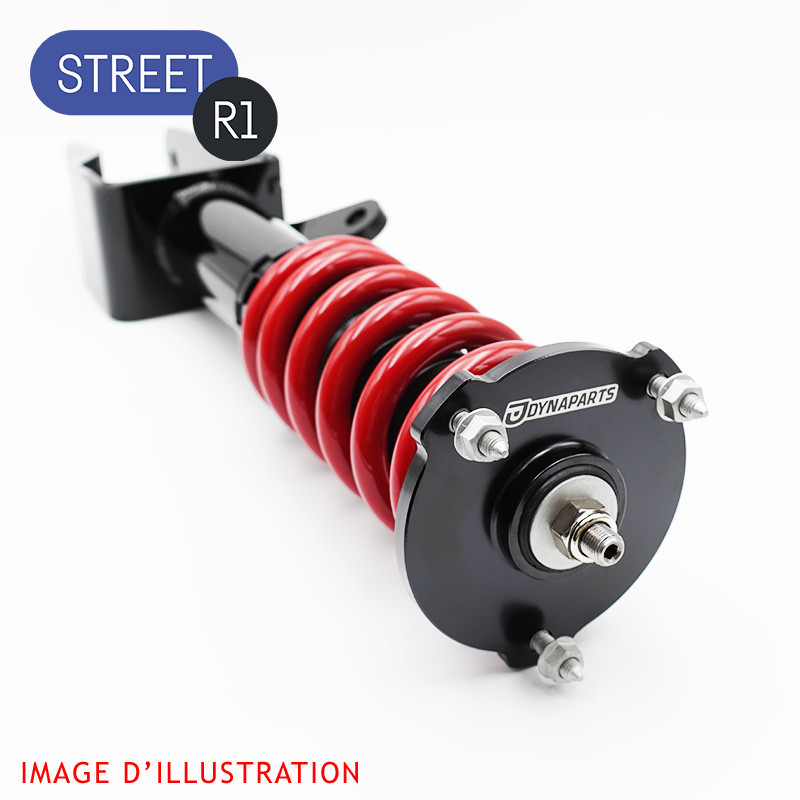

ALFA ROMEO 166 Typ 936 - Street R1 Dynaparts Coilovers (98-07)

The Street R1 Dynaparts is the coilover kit that turns a track outing into a successful weekend without giving up everyday comfort. One dial, 33 positions, and height adjustment independent of damping: everything you need to gain grip and stability without hammering the body over speed bumps.

Technical specifications

• Damping adjustment: 1-way - 33 positions (simultaneous compression and rebound)
• Design: Standard
• Front strut mount: Fixed aluminum strut mount
• Rear strut mount: Fixed aluminum strut mount
• Front spring rate: 12 kg/mm
• Rear spring rate: 10 kg/mm
• Separate oil reservoir: Yes
• Use: All-round - street and track days

Vehicle compatibility

• Model: ALFA ROMEO 166 Typ 936
• Years: 98-07

Important notes:

• 4-cylinder, 6-cylinder
• the front hub carrier needs to be reworked

Why choose the Street R1?

The Street R1 is designed for the enthusiast driver who wants a genuine coilover kit without giving up everyday comfort. Separating ride height and damping lets you lower the car to your liking without making the ride unnecessarily harsh. For your first track days, the R1 offers a solid foundation with its separate oil reservoir and 33 adjustment positions.

To go further, the range moves up to the Street R2 (independent 2-way) for those who want to fine-tune compression and rebound separately, and the Street R3 (3-way) for competition-level control. The Track R2 and R3 versions are for track use only, with an inverted monotube design.
