Wagner Tuning Intercooler for Honda Civic Type R FK8

Wagner Tuning performance part: Competition intercooler designed and manufactured in Germany by Wagner Tuning for the Honda Civic Type R FK8.

On the Civic Type R FK8, the original intercooler quickly reaches saturation during sustained driving or on track, especially after an ECU tune. With more than twice the volume and nearly double the frontal area, the Wagner Tuning Competition intercooler noticeably lowers intake air temperature, reduces pressure drop, and improves engine response, for high and consistent performance.

Technical specifications:

• Volume increased by 140%: 15.4 L vs. 6.4 L for the original intercooler
• Frontal area increased by 91%: 1,226 cm² vs. 640 cm² original
• Core dimensions: 670 x 183.4 x 125 mm
• Competition tube & fin core, for very efficient cooling with minimal pressure drop
• Cast aluminum end tanks designed using CAD and computational fluid dynamics (CFD) for optimal internal flow
• Integrated inlet deflector, for even air distribution across the entire core
• Ports: 65 mm inlet and 70 mm outlet diameter
• Lightweight and robust: 9.6 kg
• Anti-corrosion coating with high thermal conductivity, for lasting efficiency
• Plug & play fitment on original mounting points, without modification, with detailed instructions
• German Teilegutachten (TÜV certificate) supplied

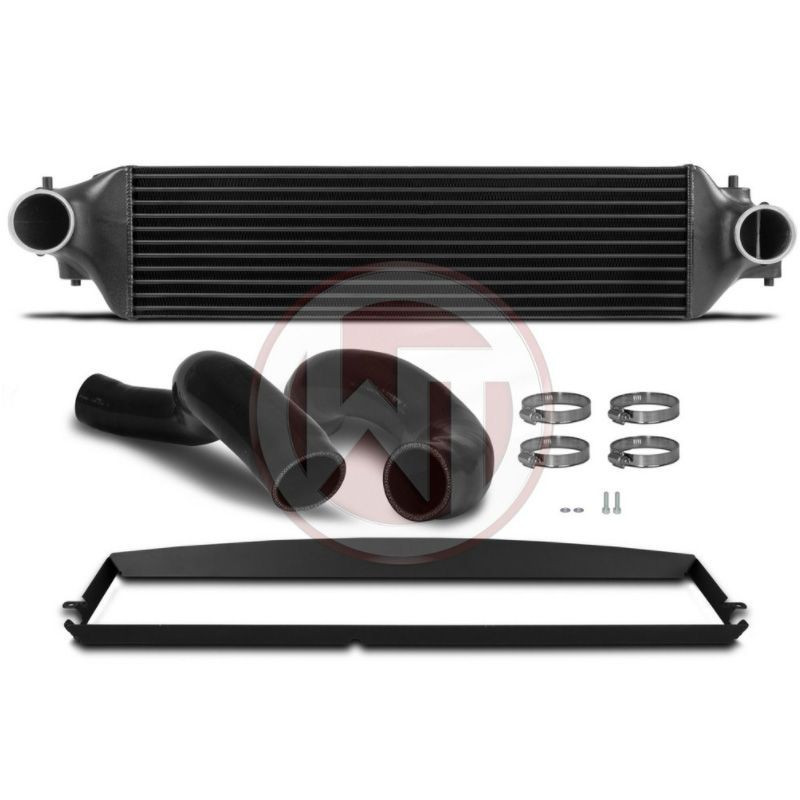

Kit contents:

• 1 intercooler
• 1 air deflector
• 2 silicone hoses
• Mounting hardware
• 1 installation manual
• 1 Teilegutachten

Fits: Honda Civic Type R FK8 2.0 VTEC Turbo (K20C1), 2017-2021

Important: Check that this part fits your vehicle (year, engine displacement and engine code) before ordering.
