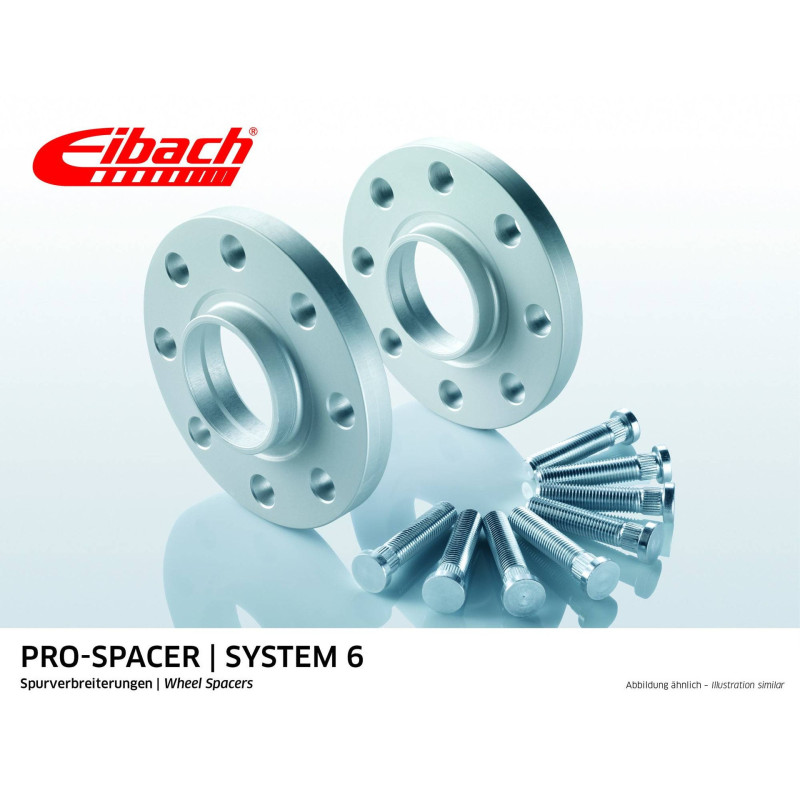

Eibach Wheel Spacers 114.3x5 in 10 mm

Pair of Eibach wheel spacers, solid aluminum wheel spacers with steel insert, made in Germany. Kit part number: S90-6-10-004.

Specifications

• Sold as a pair
• Thickness of each spacer: 10 mm, for a total of 20 mm per axle
• Bolt pattern: 114.3x5
• Hub bore: 66 mm
• Fastener thread: M12x1.25
• Color: aluminum
• Hardware included, with wheel centering ring

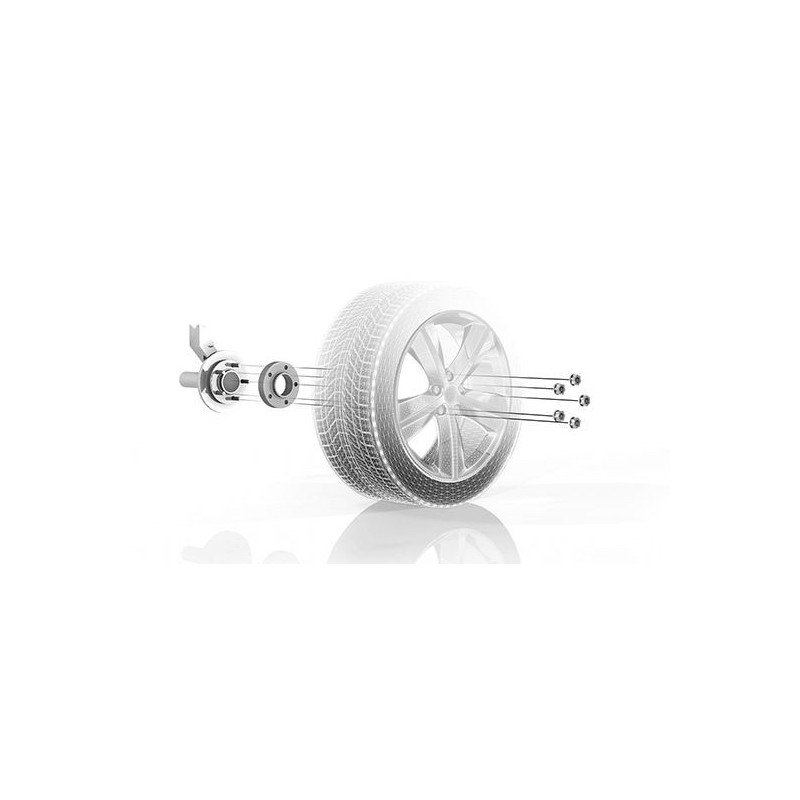

• Mounting system: bolt-on, stud-mount
• Eibach system type: 6

Example compatible vehicles

• NISSAN 350 Z (Z33) 09.02 -; 350 Z ROADSTER (Z33) 10.03 -
• NISSAN 370 Z (Z34) 04.09 -; 370 Z ROADSTER (Z34) / 370 Z CONVERTIBLE (Z34) 01.09 -
• NISSAN JUKE (F15) 06.10 -
• NISSAN MURANO (Z50) 08.03 -
• NISSAN PULSAR (N17) 08.12 -
• NISSAN QASHQAI / QASHQAI +2 (J10, JJ10) 02.07 -
• NISSAN X-TRAIL (T30) 06.01 - 12.07; (T31) 03.07 -; (T32) 12.13 -
• RENAULT KOLEOS (HY_) 09.08 -

Important: on Mazda, Nissan, Subaru and Hyundai, bolts vary by model, axle and year. Check the original knurl diameter. Included bolts have a 14.9 mm diameter or, for Subaru, 14.3 mm. For any other diameter, please specify when ordering. The original studs fitted to the hub must be replaced with the ones supplied.

Review this technical information before ordering. If in doubt about fitment, mounting or the correct hardware, contact us.
