Eibach Wheel Spacers 114.3x5 15 mm

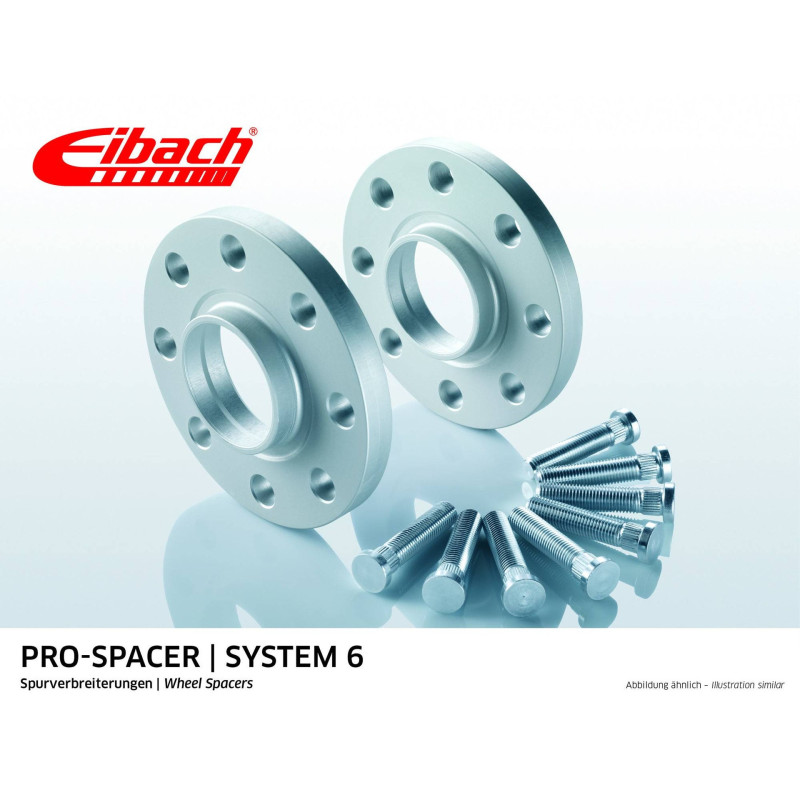

Pair of Eibach solid aluminum wheel spacers with steel insert, made in Germany. Kit part number: S90-6-15-026.

Features

• Sold per pair
• Thickness of each spacer: 15 mm, for a total of 30 mm of width per axle
• PCD: 114.3x5
• Hub bore (diameter): 66 mm
• Thread size of fasteners: M12x1.25
• Finish: aluminum
• Stud mounting, simple lug nut mounting
• Eibach system type: 6
• Hardware included, with hub centric ring

Examples of compatible vehicles

• Nissan: 350 Z (Z33) 09.02 -; 350 Z Roadster (Z33) 10.03 -; 370 Z (Z34) 04.09 -; 370 Z Roadster (Z34) / 370 Z Convertible (Z34) 01.09 -; Juke (F15) 06.10 -; Murano (Z50) 08.03 -; Pulsar (N17) 08.12 -; Qashqai / Qashqai +2 (J10, JJ10) 02.07 -; X-Trail (T30) 06.01 - 12.07; X-Trail (T31) 03.07 -; X-Trail (T32) 12.13 -
• Renault: Koleos (HY_) 09.08 -

Important notes

Please verify these technical details before ordering. If in doubt, contact us to refine your search.

• Hub centering is only possible with the wheel bolts. In some cases, balancing the vehicle's wheels may be required to prevent vibrations.
• On Mazda, Nissan, Subaru and Hyundai, the bolts vary by model, axle and year. Check the original knurl diameter: 14.9 mm or Subaru 14.3 mm bolts are supplied. For any other diameter, specify it when ordering.
• The original studs fitted to the hub must be replaced with those supplied.
