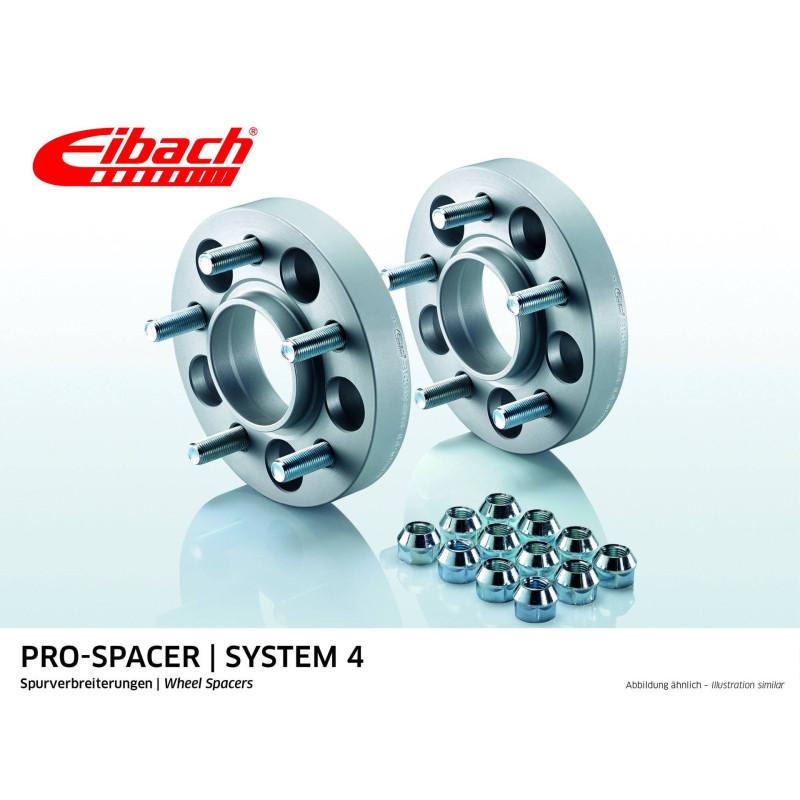

Eibach 100x5 Wheel Spacers 30 mm

Pair of Eibach wheel spacers, 30 mm thick, solid aluminum with steel insert, made in Germany. Kit reference: S90-4-30-030.

• Sold as a pair
• Spacer thickness: 30 mm, for a total width of 60 mm per axle
• Bolt pattern: 100x5
• Hub bore diameter: 56 mm
• Stud thread: M12x1.25
• Finish: aluminum
• Mounting system: dual-bolt, with studs
• Eibach system type: 4
• Hardware included, with wheel centering ring

Example compatible vehicles

• SUBARU BRZ 06.12 -
• SUBARU IMPREZA SCHRÄGHECK (GR, GH, G3) / IMPREZA HATCHBACK (GR, GH, G3) 03.07 -
• SUBARU IMPREZA STUFENHECK (GR) / IMPREZA SALOON (GR) 03.07 -
• SUBARU XV 12.11 -
• TOYOTA GT 86 COUPE (ZN6_) 03.12 -

Technical notes

• Wheel centering is only possible with the wheel bolts.
• In some circumstances, balancing the vehicle's wheels may be required to prevent vibration.
• On Mazda / Nissan / Subaru / Hyundai, bolts differ by model, axle and year. Check the original knurl diameter. The supplied bolts have a 14.9 mm diameter or, for Subaru, 14.3 mm. For any other diameter, specify it when ordering.
• Studs do not need to be replaced when fitting the spacer, as the required thread engagement (bolt or nut turns) remains compliant with the ratio requirements.

Review this information before ordering. If you are unsure about compatibility or suitable hardware, contact us.
