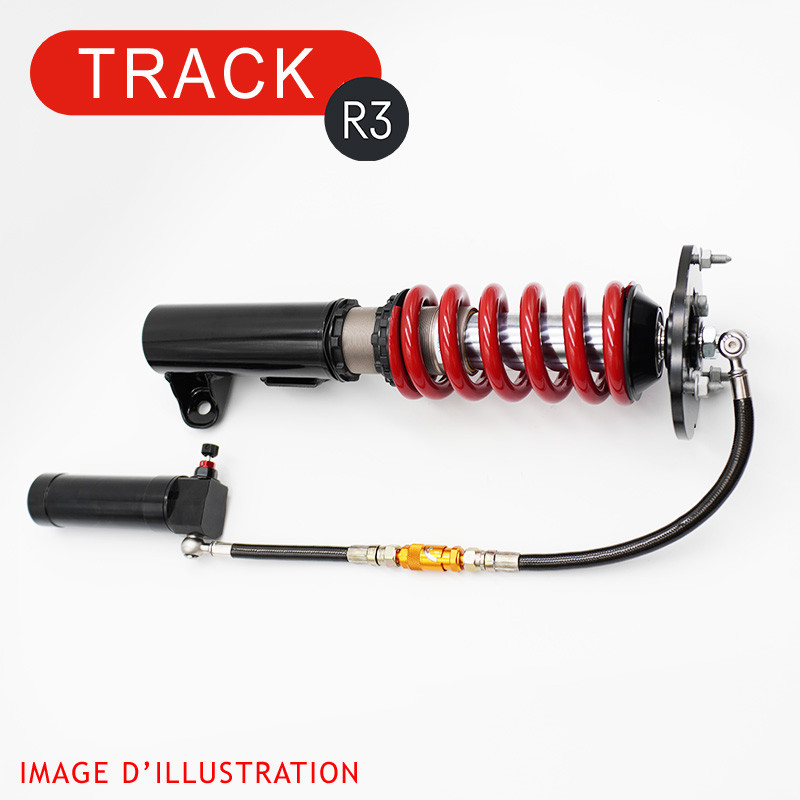

VOLKSWAGEN PASSAT B6/3C - Track R3 Dynaparts coilovers (05-14)

The Track R3 Dynaparts combines everything you could ask of a track coilover: upside-down architecture for rigidity under load, twin reservoirs for thermal stability, 3 independent channels for absolute precision. 33 positions per channel.

Technical specifications

• Damping adjustment: 3 independent channels - 33 positions per channel
• Design: Inverted monotube (upside-down)
• Front top mount: Spherical top mount with aluminum camber plate
• Rear top mount: Reuse original top mount
• Front spring rate: 14 kg/mm
• Rear spring rate: 9 kg/mm
• Separate oil reservoir: Yes
• Additional reservoir: Yes
• Use: Track use only

Vehicle fitment

• Model: VOLKSWAGEN PASSAT B6/3C
• Years: 05-14

Important notes:

• Sedan/estate, including TDI, 2WD
• Rear shock absorbers and springs mounted together

Why choose the Track R3?

The Track R3 is the top of the Dynaparts range: three-channel damping adjustment, upside-down architecture, twin reservoirs. It is the kit for drivers who have a precise setup in mind. On bumpy tracks or in fast sequences, adjustable high-speed compression makes a measurable difference in lap time.

For less intensive use, the Track R2 offers the same foundations (upside-down, twin reservoirs) with 2 channels. The Street R2 and R3 allow mixed road/track use with the same level of adjustment precision.
