VOLKSWAGEN PASSAT B6/3C - Track R2 Dynaparts coilovers (05-14)

Upside-down architecture, dual reservoirs, raised spring rates: the Track R2 Dynaparts is sized to handle timed track sessions without degrading. The inverted design provides more lateral rigidity and better heat dissipation than a standard design.

Technical specifications

• Damping adjustment: 2 independent adjustments - 33 positions per adjustment
• Design: Inverted monotube (upside-down)

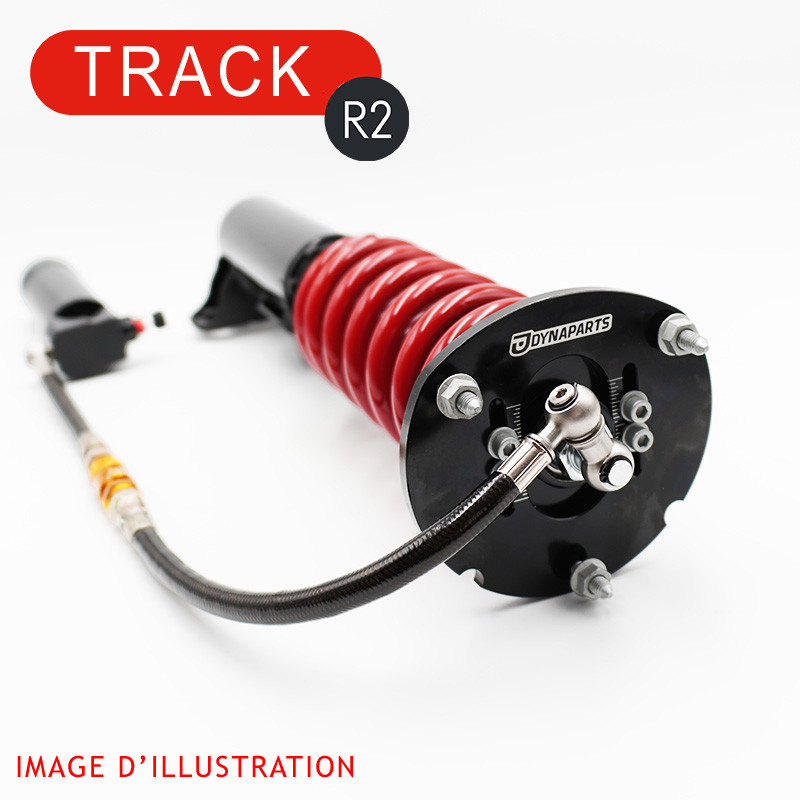

• Front strut mount: Spherical-bearing top mount with aluminum camber plate
• Rear strut mount: Original rear strut mount reused
• Front spring rate: 14 kg/mm
• Rear spring rate: 14 kg/mm
• Separate oil reservoir: Yes
• Additional reservoir: Yes
• Use: Track use only

Vehicle compatibility

• Model: VOLKSWAGEN PASSAT B6/3C
• Years: 05-14

Key points:

• Sedan/estate, including TDI, 2-wheel drive
• Rear shock absorbers and springs are mounted separately.

Why choose the Track R2?

The Track R2 is designed for drivers who use the track regularly and need a kit that lasts under repeated loads. The inverted monotube architecture improves lateral rigidity and heat dissipation. The dual oil reservoirs keep temperatures stable even during long sessions. Two independent adjustments to fine-tune compression and rebound for the track.

If you want even finer control, the Track R3 adds high-speed compression as a third adjustment. For mixed street/track use, the Street R2 and R3 offer the same fine-tuning in a daily-use format.
