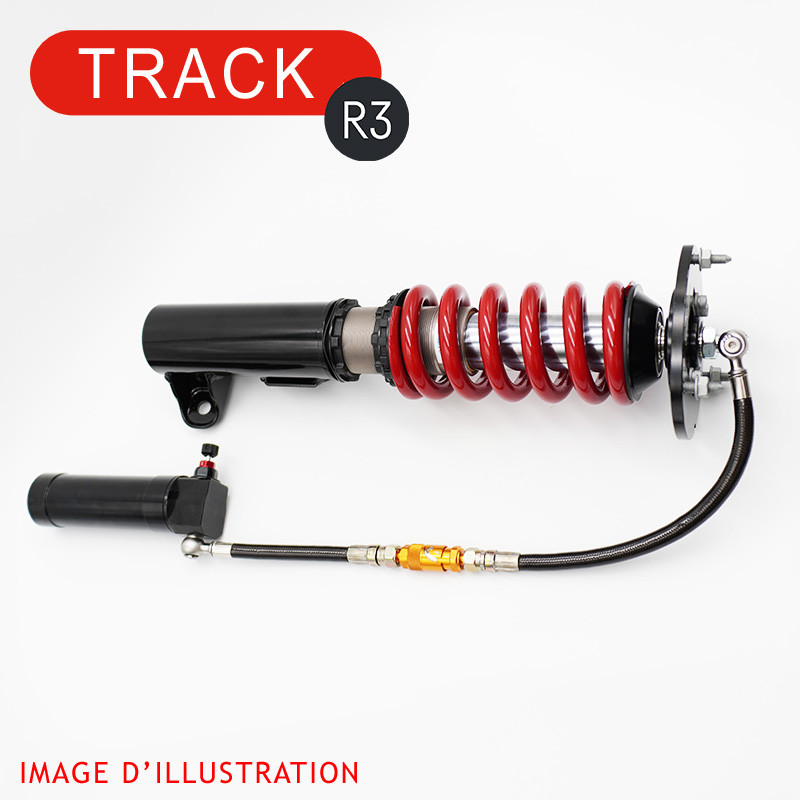

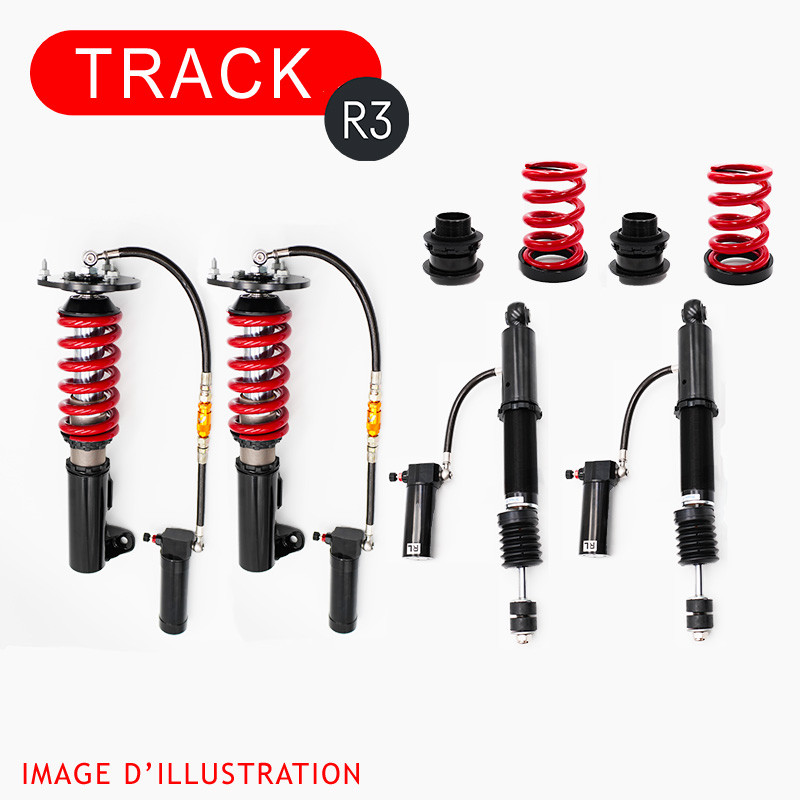

MAZDA MAZDA3 BK - Track R3 Dynaparts Coilovers (04-09)

Triple-way adjustment, upside-down monotube, dual reservoir: the Track R3 Dynaparts offers the highest level of control in the range. Low-speed compression, high-speed compression and rebound adjusted separately, for a precisely dialed-in track setup.

Technical specifications

• Damping adjustment: 3 independent ways - 33 positions per way
• Design: Upside-down monotube
• Front mount: Ball-joint mount with aluminum camber plate
• Rear mount: Fixed aluminum mount (or ball-joint mount with surcharge)
• Front spring rate: 16 kg/mm
• Rear spring rate: 16 kg/mm

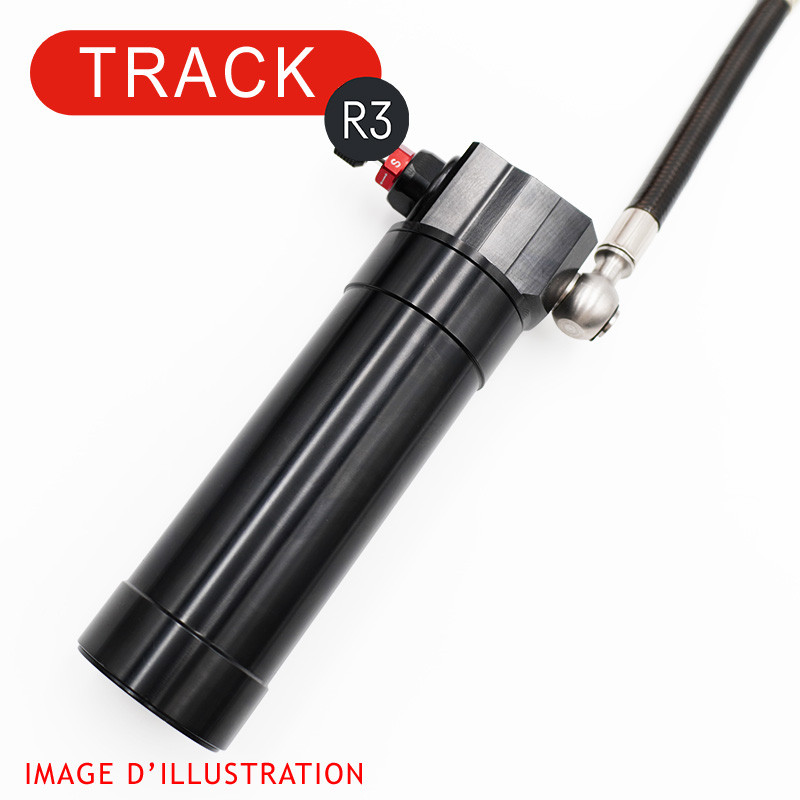

• Separate oil reservoir: Yes
• Additional reservoir: Yes
• Use: Track use only

Vehicle compatibility

• Model: MAZDA MAZDA3 BK
• Years: 04-09

Important notes:

• 2WD vehicles, MPS included. Supplied with a pair of cables allowing adjustment without disassembly.

Why choose the Track R3?

The Track R3 is the top of the Dynaparts range: triple-way adjustment, upside-down design, dual reservoir. It is the kit for drivers who have a precise setup in mind. On bumpy circuits or in fast sequences, adjustable high-speed compression makes a measurable difference in lap times.

For less intensive use, the Track R2 offers the same foundation (upside-down, dual reservoir) with 2-way adjustment. The Street R2 and R3 allow mixed road/track use with the same level of adjustment precision.
