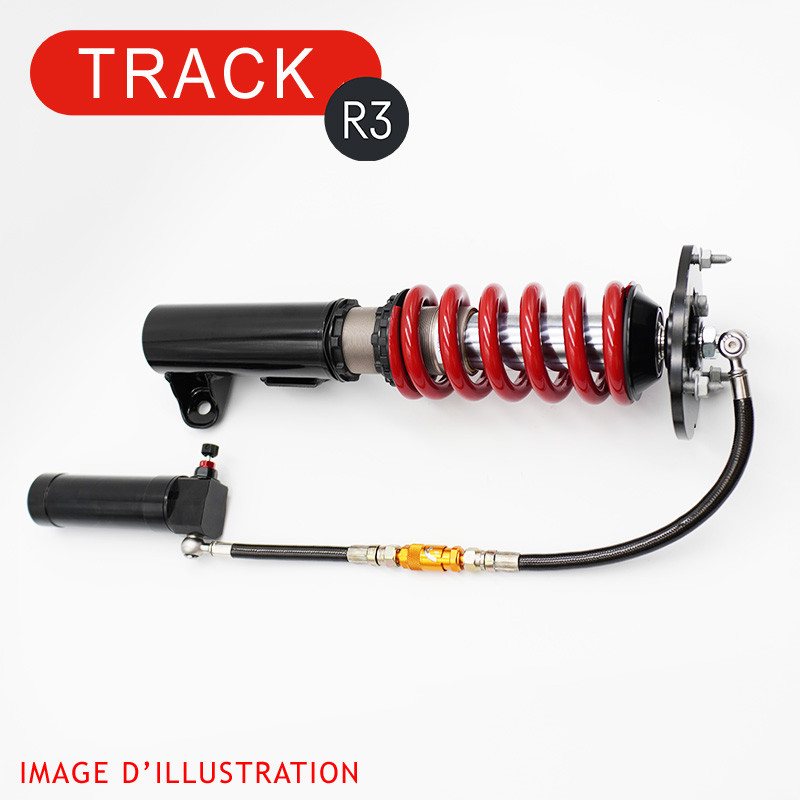

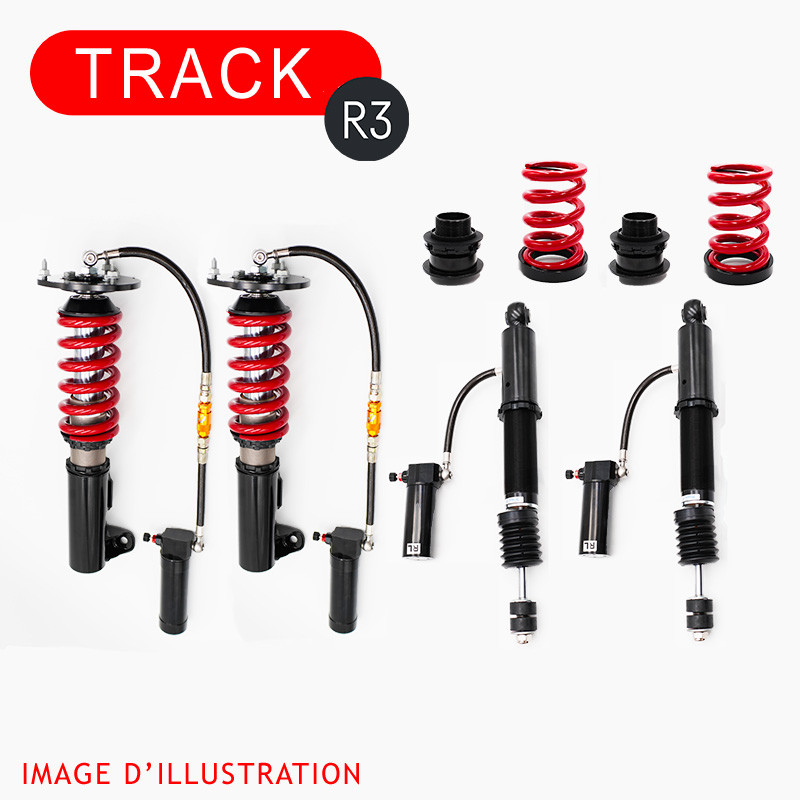

BMW M3 E46: Track R3 Coilovers by Dynaparts (01-06)

Three-way, inverted monotube, twin reservoir: the Dynaparts Track R3 is the highest level of control in the range. Low-speed compression, high-speed compression and rebound are managed separately, for a precise track setup.

Technical specifications

• Damping adjustment: 3 independent ways - 33 positions per way
• Design: Inverted monotube (upside-down)
• Front strut mount: Spherical mount with aluminum camber plate
• Rear strut mount: Fixed aluminum mount (or spherical with upcharge)
• Front spring rate: 16 kg/mm
• Rear spring rate: 12 kg/mm

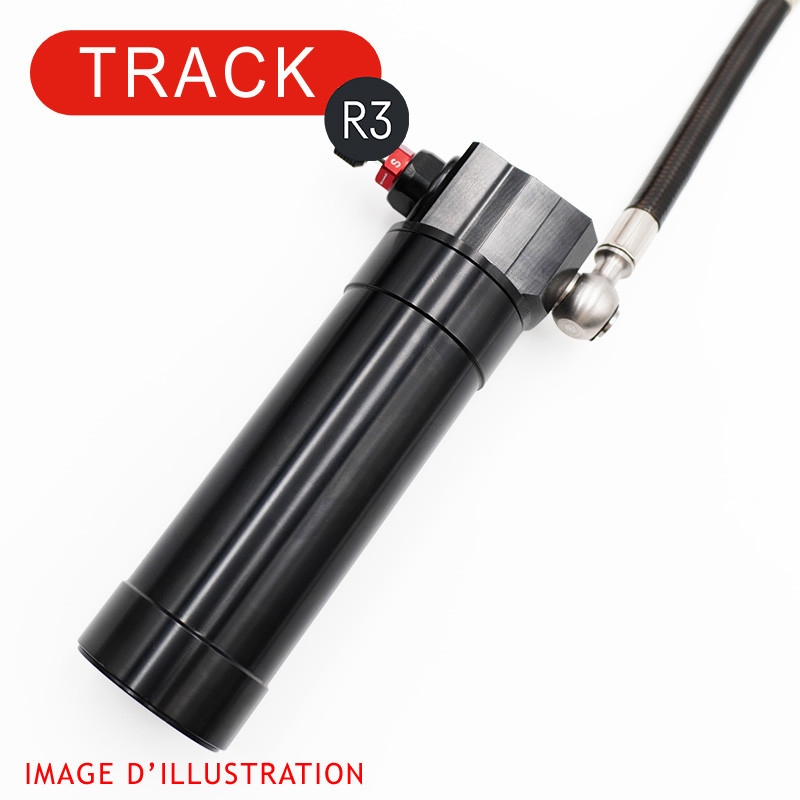

• Separate oil reservoir: Yes
• Additional reservoir: Yes
• Use: Track only

Vehicle compatibility

• Model: BMW M3 E46
• Years: 01-06

Important notes:

• rear shocks and springs mounted together (body cutting required)
• Front upper mounts being offset

Why choose the Track R3?

The Track R3 is the top of the Dynaparts range: 3-way damping adjustment, upside-down design, twin reservoir. It is the kit for drivers with a precise setup in mind. On a bumpy track or in fast sequences, adjustable high-speed compression makes a measurable difference in lap times.

For less intensive use, the Track R2 offers the same foundations (upside-down, twin reservoir) with 2 ways. The Street R2 and R3 allow mixed road/track use with the same level of adjustment precision.
