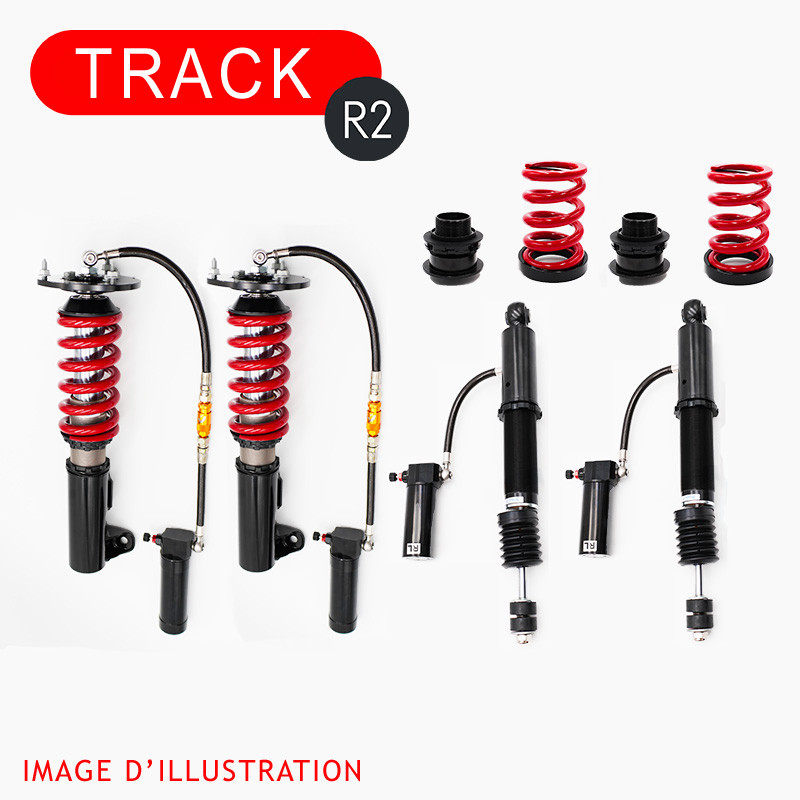

BMW 5 Series E60 - Track R2 Dynaparts Coilovers (03-10)

The Track R2 Dynaparts was built for one environment only: the track. Upside-down monotube design, dual oil reservoirs, high spring rates: everything is engineered for the repeated loads of intensive sessions. Two independent adjustment ways, 33 positions each.

Technical specifications

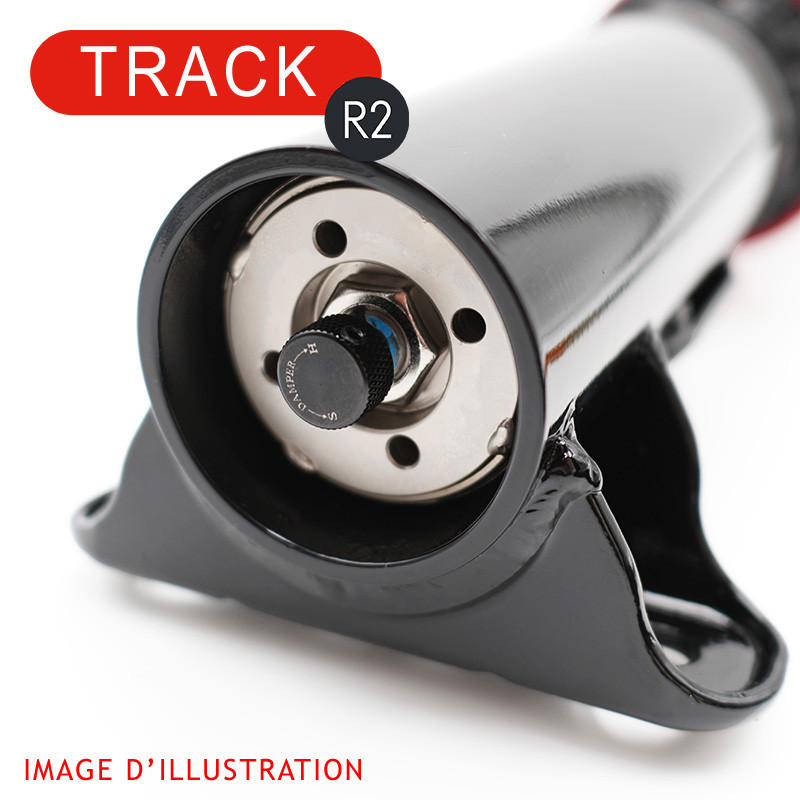

• Damping adjustment: 2-way independent, 33 positions per way
• Design: Upside-down monotube

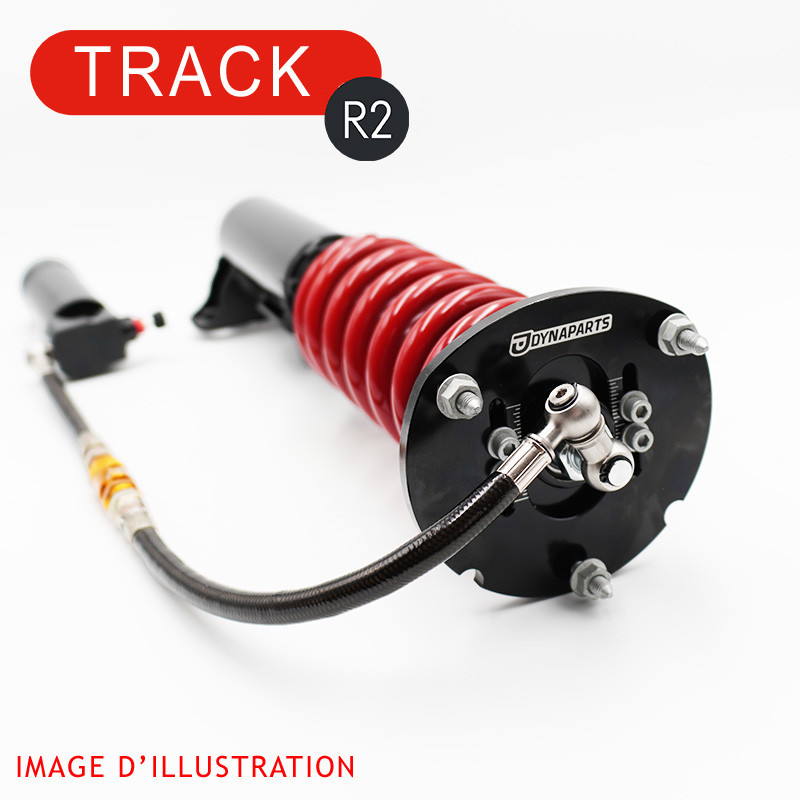

• Front strut mount: Spherical mount with aluminum camber plate
• Rear strut mount: Fixed aluminum mount (or spherical mount with surcharge)
• Front spring rate: 18 kg/mm
• Rear spring rate: 20 kg/mm
• Separate oil reservoir: Yes
• Additional reservoir: Yes
• Use: Track use only

Vehicle compatibility

• Model: BMW 5 Series E60
• Years: 03-10

Key points:

• 540i, 545i, 550i
• except self-leveling suspension and wagon

Why choose the Track R2?

The Track R2 is designed for drivers who use the track regularly and need a kit that holds up over time under repeated loads. The upside-down monotube design improves lateral rigidity and heat dissipation. The dual oil reservoirs maintain stable temperatures even during long sessions. Two independent channels let you fine-tune compression and rebound for the circuit.

For even finer control, the Track R3 adds high-speed compression as a third adjustment channel. For mixed road/track use, the Street R2 and R3 offer the same fine-tuning in a daily-use format.
