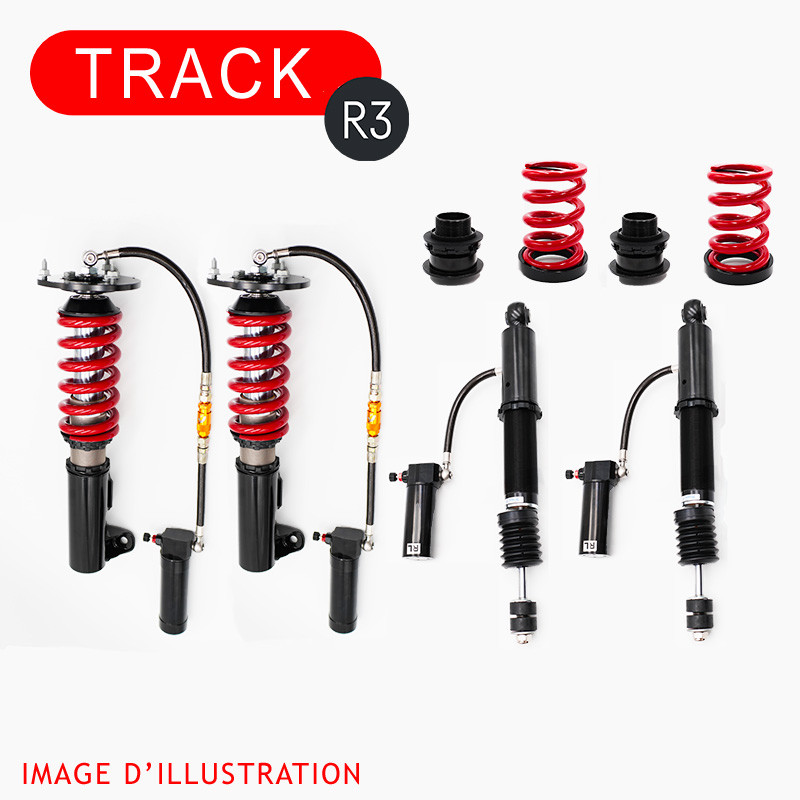

BMW 3 Series E92: Track R3 Dynaparts Coilovers (06-13)

On track, high-speed compression makes the difference in fast corners and late braking. The Track R3 makes it independently adjustable, as with rebound and low-speed compression. Inverted monotube architecture, dual reservoirs, race-spec spring rates.

Technical specifications

• Damping adjustment: 3 independent ways, 33 positions per way
• Design: Inverted monotube (upside-down)

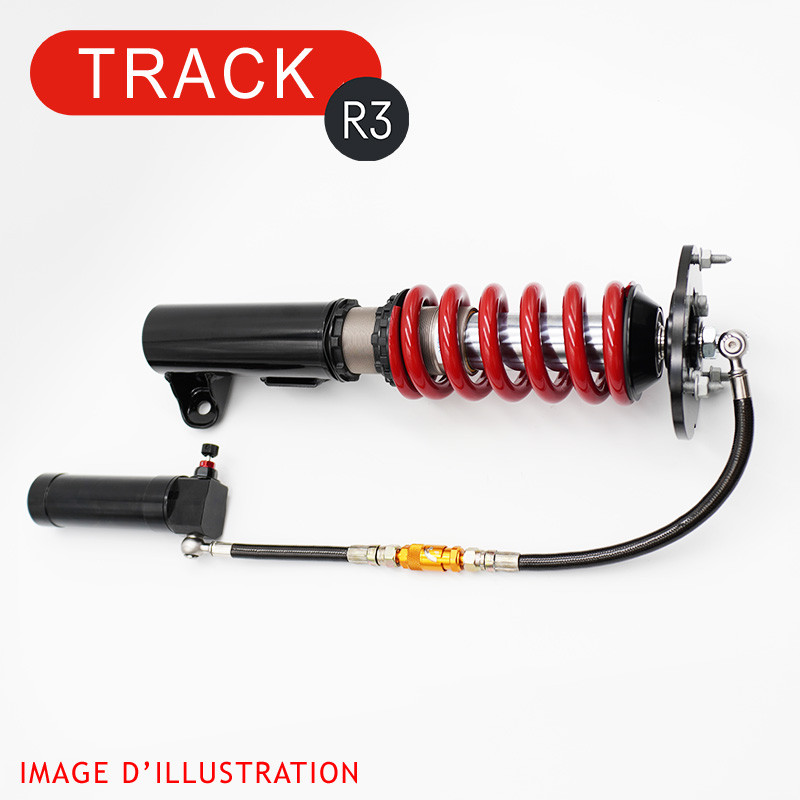

• Front strut mount: Spherical bearing strut mount with aluminum camber plate
• Rear strut mount: No strut mount required
• Front spring rate: 14 kg/mm
• Rear spring rate: 12 kg/mm

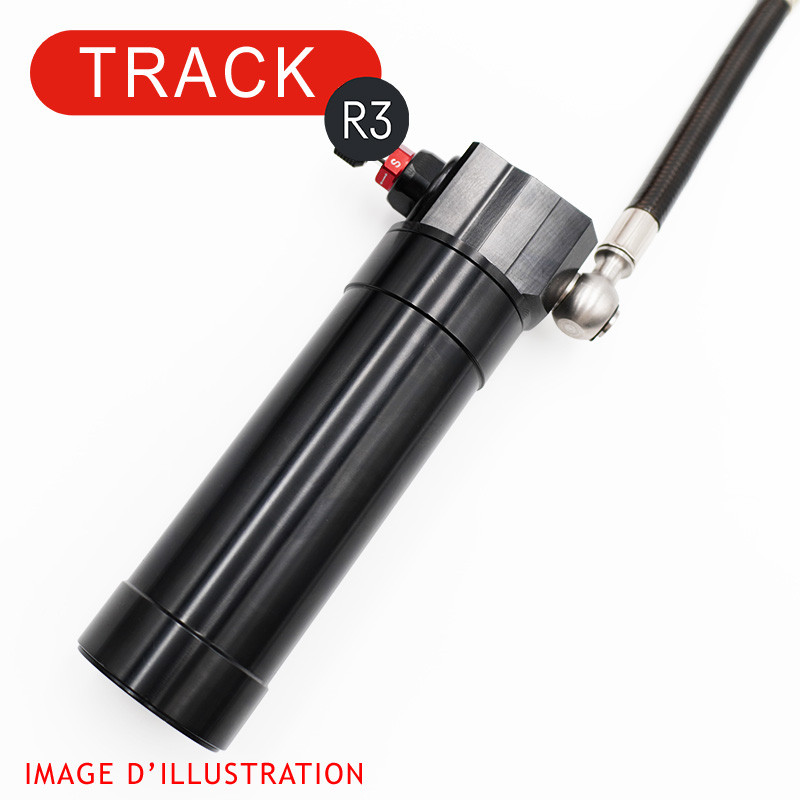

• Separate oil reservoir: Yes
• Additional reservoir: Yes
• Use: Track use only

Vehicle compatibility

• Model: BMW 3 Series E92
• Years: 06-13

Important notes:

• Coupe
• Rear-wheel drive
• Rear shock absorbers and springs mounted together
• Supplied with a pair of cables allowing adjustment without disassembly.
• Torque of 110 Nm required on the rear, using a torque wrench

Why choose the Track R3?

The Track R3 is the top of the Dynaparts range: 3-way adjustment, upside-down design, dual reservoirs. It is the kit for drivers who have a precise setup in mind. On bumpy tracks or in fast sequences, the adjustable high-speed compression makes a measurable difference in lap times.

For less intensive use, the Track R2 offers the same foundations (upside-down, dual reservoirs) with 2-way adjustment. The Street R2 and R3 allow mixed street/track use with the same level of adjustment precision.
