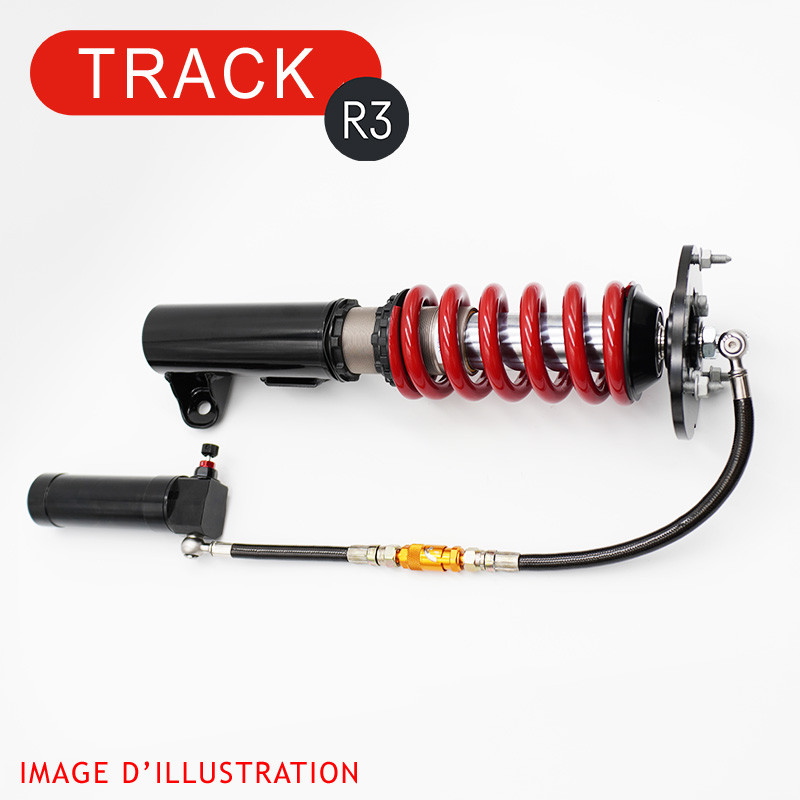

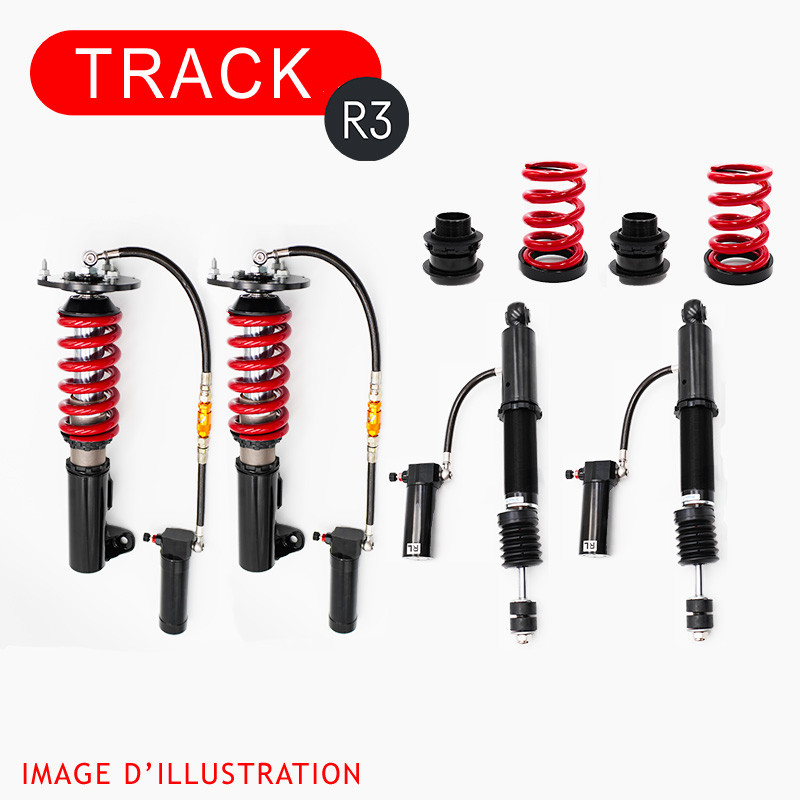

BMW 3 Series E92: Track R3 Dynaparts Coilovers (06-13)

On track, high-speed compression makes the difference in fast corners and late braking. The Track R3 makes it independently adjustable, as well as rebound and low-speed compression. Inverted monotube design, double reservoir, race-spec settings.

Technical specifications

• Damping adjustment: 3 independent ways, 33 positions per way
• Design: Inverted monotube (upside-down)
• Front strut mount: Spherical strut mount with aluminum camber plate
• Rear strut mount: No strut mount required
• Front spring rate: 14 kg/mm
• Rear spring rate: 18 kg/mm

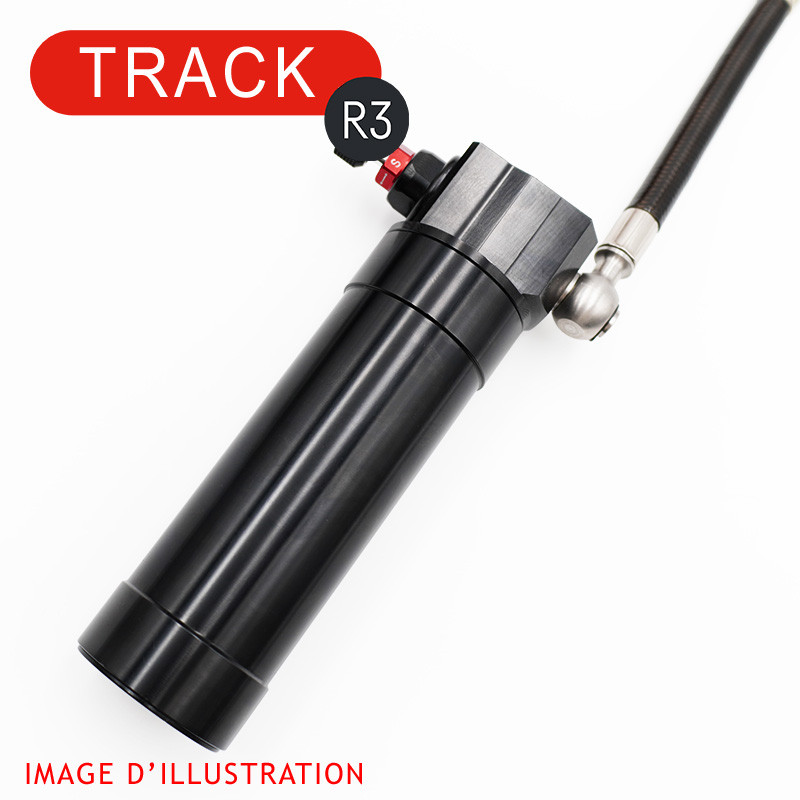

• Separate oil reservoir: Yes
• Additional reservoir: Yes
• Use: Track only

Vehicle compatibility

• Model: BMW 3 Series E92
• Years: 06-13

Key points:

• coupe
• 2WD
• Rear shocks and springs are installed separately.
• Supplied with a pair of cables allowing adjustment without disassembly.
• Torque to 110 Nm required on the rear with a torque wrench

Why choose the Track R3?

The Track R3 is the top of the Dynaparts range: triple-way adjustment, upside-down architecture, double reservoir. It is the kit for drivers who have a precise setup in mind. On bumpy tracks or in fast sequences, adjustable high-speed compression makes a measurable difference in lap times.

For less intensive use, the Track R2 offers the same fundamentals (upside-down, double reservoir) with 2-way adjustment. The Street R2 and R3 allow mixed road/track use with the same level of adjustment precision.
